█ Summary:

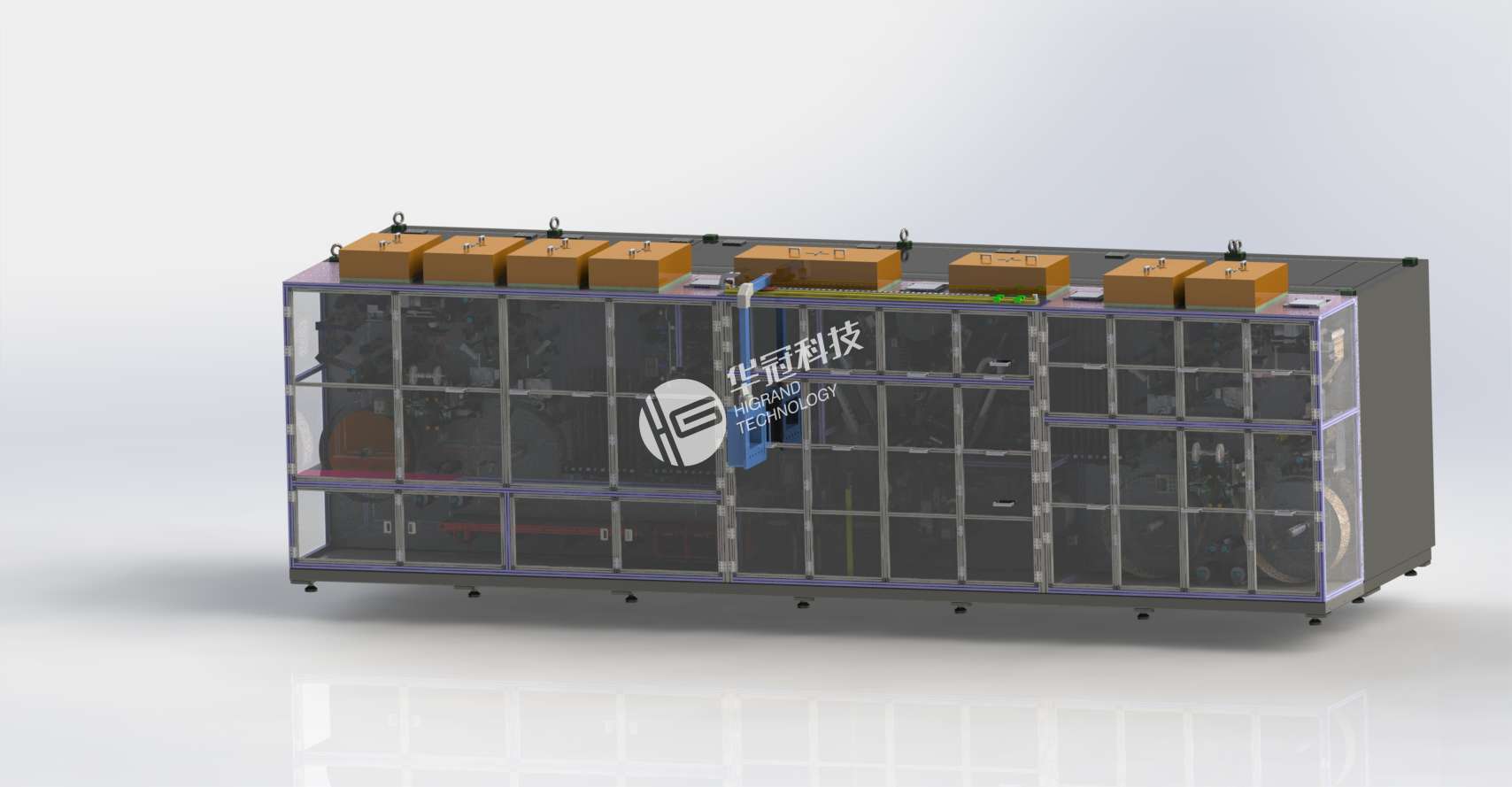

This equipment is used for making prismatic power cell or stored battery. To put the separator and welded electrode on the feeding shaft artificially. Via automatically winding, rectifying and positioning, it can finish winding, adhesive tape sticking, cold pressing, short circuit testing, loading to conveyor belt etc. It’s stable to making cells.

█ Features:

lAdopt three-station winding device to improve productivity

lAdopt servo controlling tension closed-loop system, within ±3%

lWith tab cutting function, to closed-loop control the tab cutting dimension

lWith winding needle adjusting diameter design, closed-loop control tab disposition

lWith auto change electrode and separator function

lWith removing dust, iron and static function

lWith cutting electrode and sticking protective tape function

lWith detecting and automatic eliminating defective electrode function

lCutter modular design, easy to operate and maintenance

lClamp-on to unload and transfer, no damage to cell

lThe defective cell can be classified by manipulator

lWith dust cover and FFU air cleaning system

lWith laser scan code and print code function, product quality can be traced back to MES system

█ TechnicalParameters：
